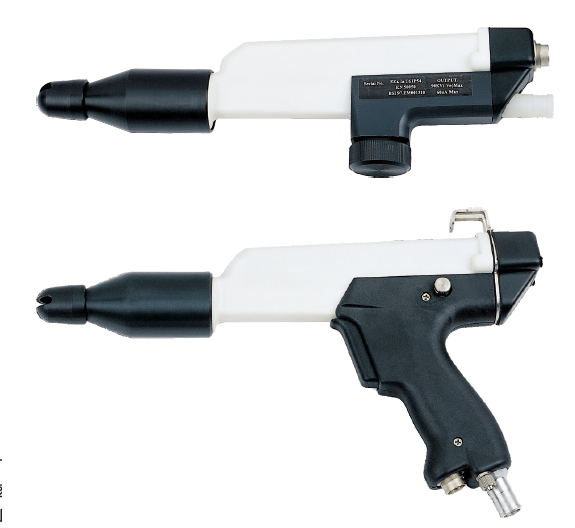

Powder Coating Gun ( GEMA or per customer requirement )

Electrical Parameter:

Input Voltage: Single Phase 220V/50HZ

Power : 30VA

Max Output Voltage: -85KV

Max Output Current: 80 Μa

Compressed Air Parameter:

Max Input Pressure: 10 bar

Min Input Pressure: 6 bar

Max Moisture content: 1.3g/Nm³

Max Oil content: 0.1mg/Nm³

Compressed Air Consumption:10 Nm³

Compressed Air Input Diameter: G1/4”rifled pipe or Φ8mm plastic pipe

Manual coating gun partameter:

Cable & Powder Pump Length: 5 M

Powder Gun Weight: around 480g
